Machine Room Less Elevators: Frame Building Supported

MRL – Frame Building Supported

MRL Car Type Summary

The group one “Machine Room Less” is an engineered package design that utilizes an efficient gearless permanent magnet machine. This machine, with all the related traction components, is installed inside the hoistway eliminating the need for a machine room.

Engineering support and service
Shop drawings and group one installation drawings
Consolidated shipment when complete package is ordered

Advantages for the building owner:

Saving on valuable floor space
No contamination to the ground like on hydraulic applications.
Greater power efficiency
Superior performance and ride quality
Reduction on the elevator power feeder

Equipment Included:

Gearless MRL PM Torin machine
Governor and tail sheave
Overhead beams, machine bedplate, hitch plates, governor plate
Counterweight frame and weights
Car & cwt roller guides with mounting plates
Sling including: Crosshead, stiles, bolsters, brace rods, strike plates
Platform with toe guard
Buffer stands, spring or oil buffers
Safeties
Underslung assembly with deflector sheaves
Guide rails, rail brackets with spreader plates, clips and fasteners
Car & cwt ropes and wedge sockets
Limit switches, mounting brackets & cam
All hardware included in labeled bags

Equipment Capabilities:

Passenger & service cars
Capacities from 2,100 lbs up to 3,500 lbs
Speeds from 100 FPM up to 350 FPM
Travels up to 200 ft

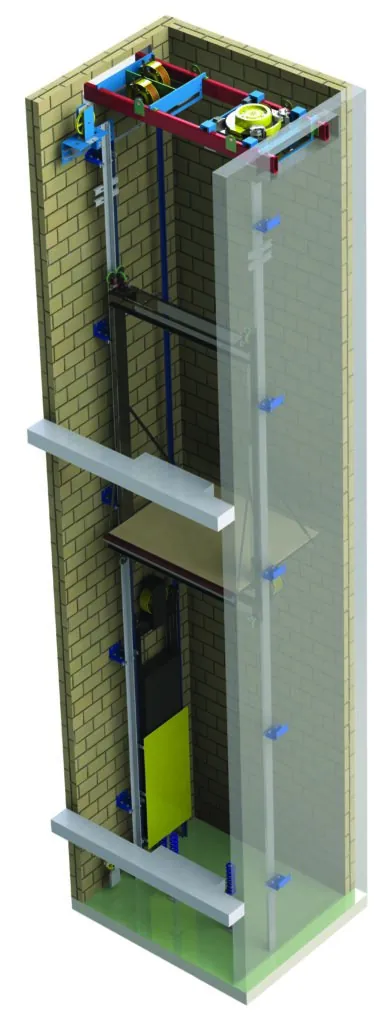

For building supported design machine beam pockets are required in the hoistway walls.

MRL Front Opening Dimensions

CAPACITY (LBS.)	PLATFORM W X D	HOISTWAY W X D	CLEAR OPENING	CLEAR INSIDE W X D	SSSO DOOR	SSCO DOOR	NON-SEISMIC ZONE PDF	SEISMIC ZONE PDF
P2100-FO	6’-0” x 5’-1”	7’-8” x 5’-10”	3’-0”	5’-8” x 4’-3”	X		MRL FRAME BUILDING SUPPORTED PASSENGER 2100 FO ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 2100 FO ZONE2 OR GREATER
P2500-FO	7’-0” x 5’-1”	8’-8” x 5’-10”	3’-6”	6’-8” x 4’-3”	X	X	MRL FRAME BUILDING SUPPORTED PASSENGER 2500 FO ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 2500 FO ZONE2 OR GREATER
P3000-FO	7’-0” x 5’-6”	8’-8” x 6’-3”	3’-6”	6’-8” x 4’-8”	X	X	MRL FRAME BUILDING SUPPORTED PASSENGER 3000 FO ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 3000 FO ZONE2 OR GREATER
P3500-FO	7’-0” x 6’-3”	8’-8” x 7’-0”	3’-6”	6’-8” x 5’-5”	X	X	MRL FRAME BUILDING SUPPORTED PASSENGER 3500 FO ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 3500 FO ZONE2 OR GREATER

MRL Front & Rear Opening Dimensions

CAPACITY (LBS.)	PLATFORM W X D	HOISTWAY W X D	CLEAR OPENING	CLEAR INSIDE W X D	SSSO DOOR	SSCO DOOR	NON-SEISMIC ZONE PDF	SEISMIC ZONE PDF
P2100-FR	6’-0” x 5’-8”	7’-8” x 6’-8 ½”	3’-0”	5’-8” x 4’-4”	X		MRL FRAME BUILDING SUPPORTED PASSENGER 2100 FR ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 2100 FR ZONE2 OR GREATER
P2500-FR	7’-0” x 5’-8”	8’-8” x 6’-8 ½”	3’-6”	6’-8” x 4’-4”	X	X	MRL FRAME BUILDING SUPPORTED PASSENGER 2500 FR ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 2500 FR ZONE2 OR GREATER
P3000-FR	7’-0” x 5’-11”	8’-8” x 6’-11 ½”	3’-6”	6’-8” x 4’-7”	X	X	MRL FRAME BUILDING SUPPORTED PASSENGER 3000 FR ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 3000 FR ZONE2 OR GREATER
P3500-FR	7’-0” x 6’-9”	8’-8” x 7’-9 ½”	3’-6”	6’-8” x 5’-5”	X	X	MRL FRAME BUILDING SUPPORTED PASSENGER 3500 FR ZONE0	MRL FRAME BUILDING SUPPORTED PASSENGER 3500 FR ZONE2 OR GREATER

Hoistway dimensions are minimum clear inside requirements. Shorter installation times can be obtained by increasing these dimensions by up to 2”. For seismic zone 2 and up, add 2” to hoistway width to comply with Code requirements.

Use of 8mm and 10mm ropes for traction elevator was approved by A17.6-2010 effective 1st July 2010.

New York City Building Department has issued new rules governing the overhead requirements for MRL’s. Please contact a DEM Elevating Equipment representative.

Dimensions shown here are for reference only, consult your sales representative for final dimensions for your particular project.

Hoistway depth dimensions based on 8# cwt rails, if using 15# cwt rails, add 4″ to hoistway depth.

Pit and Overhead Requirements For Cars With 8’-0 Cab Height

SPEED	P2100, P2500, P3000, P3500
FPM	Pit	O.H.
100*	5’-0”	14’-6”/14'-0"
150*	5’-0”	14-7”/14'-0"
200*	5’-0”	14’-9”/14'-1"
250*	5’-6”	15’-0”/14'-6"
300*	5’-6”	15’-1”/14'-7"
350*	5’-6”	15’-4”/14'-10"

Building Supported MRL design with Torin TSM series machine.

*Spring buffers for car and counterweight / **Oil buffers for car and counterweight.

Based on ASME A17.1

O.H. Left column has spring or oil buffers with 6″ Runby / Right Column has all oil buffers with 0″ Runby.

Note: For cars with tall cabs add 1” to O.H. for every inch of cab height added.

DEM EE can provide not only standard sizes as outlined above but also non-standard or custom sizes. Please consult DEM EE for details.
